| Locator | Hist Soc - HS-CC04351 | Type | Drawing | Doc Number | 1468 | |
|---|---|---|---|---|---|---|

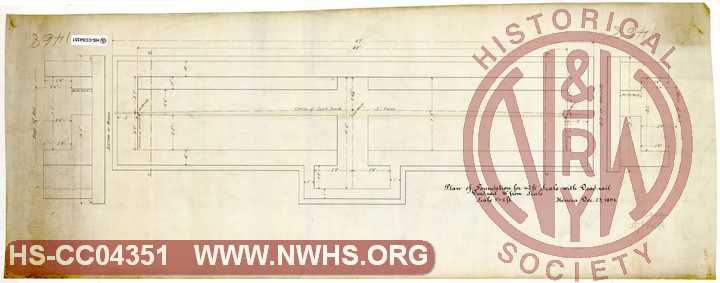

| Description | Plan of foundation for 42ft scale with dead-rail, Dead-rail 16" from scale | |||||
| Notes | Coe - "Scale - 42-ft - bill of timer - plan of foundation" | |||||
| Date | 12/23/1891 | Revision Date | ||||
| Author | N&W Railroad | Accession | 2009.001 : NS Corp/Va Tech Collection | |||
|
|
|
Size: 35in x 14in (89cm x 35cm) |
| Related | 1468b | Hist Soc - HS-C08154 | Plan of Foundation for 42Ft Track Scale with Dead Rail Attachment |
| Related | Bound Volume - BV-E00001 | Copy, Index of Maps, W.W. Coe Incomplete index to early engineering drawings. Drawing numbers range from single digits into the high 2000s. Not all drawing numbers in that range listed. ~116 pages plus cover, several pages blank. |
| Structure | Track - Scale |
| Company | N&W RR - Norfolk & Western Railroad |
