| Locator | Hist Soc - HS-D02320 | Type | Drawing | Doc Number | 5287.4 | |
|---|---|---|---|---|---|---|

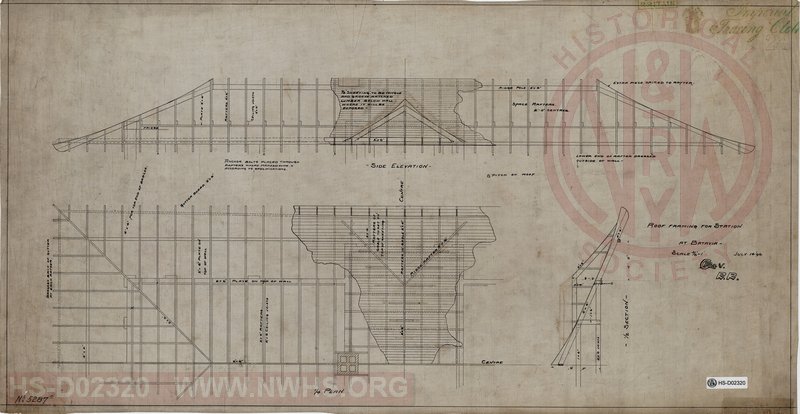

| Description | Roof Framing for Station at Batavia OH | |||||
| Date | 07/14/1896 | Revision Date | ||||
| Author | Cin, Portsm & Va RR | Accession | 2005.004 : Library of Virginia | |||
|
||
Size: 34in x 18in (87cm x 45cm) |
| Related | 5287.3 | Hist Soc - HS-D02319 | Batavia OH station, Side View "See new tracing, 1 ft lower" |
| Related | 5287.5 | Hist Soc - HS-C01276 | Batavia OH station, End View no date or header block on drawing. |
| Related | 5287.6 | Hist Soc - HS-C01275 | Batavia OH station, End View no date or header block on drawing. |
| Related | 5287.7 | Hist Soc - HS-C01274 | Batavia OH station, Section Throught Centre of Depot showing proposed arrangement "lowered 1 ft" in pencil. |
| Related | 5287.3 | Hist Soc - HS-D02321 | Batavia OH, Station - Foundation Plan |
| Related | 5287.2 | Hist Soc - HS-D02322 | Batavia OH, Station - Side Elevation |
| Related | 5287.1 | Hist Soc - HS-D02323 | Batavia OH, Station - Side Elevation |
| Related | 5287.8 | Hist Soc - HS-C01273 | End View, Batavia OH station. "See later tracing, lowered 12" " |
| City | Batavia - OH |
| Structure | Station |
| Company | CP&V - Cincinnati Portsmouth & Virginia |
