| Locator | NW Mech Dwg - NW-D25002 | Type | Drawing | Doc Number | D25002 | |
|---|---|---|---|---|---|---|

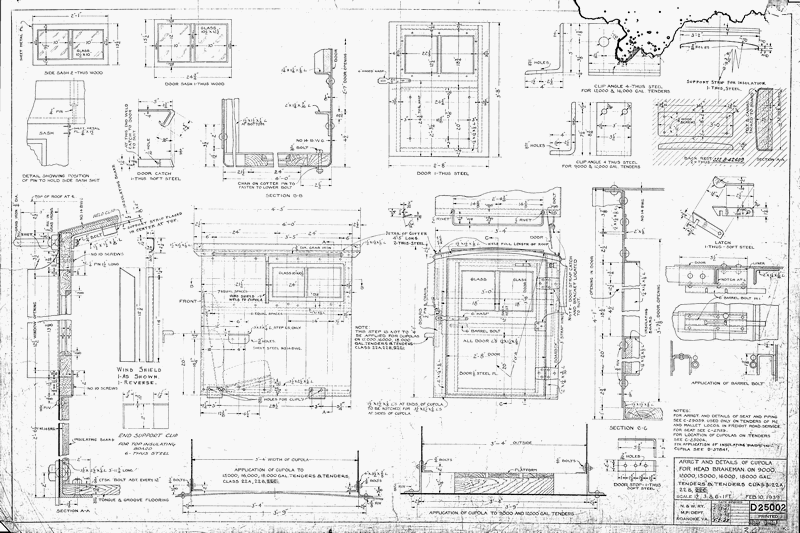

| Description | Arrangement and Details of Cupola for Head Brakeman on 9000, 12000, 15000, 16000, 18000 Gal Tenders & Tenders Class 22A, 22B | |||||
| Notes | Class 22C crossed out on this revision. | |||||
| Date | 02/10/1939 | Revision Date | 03/02/1948 | |||
| Author | N&W Rwy - Motive Power | Accession | ||||
|
|
|
Size: 33in x 22in (83cm x 55cm) |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 22A - 22,000 Gallon |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 22B - 22,000 Gallon |
| Rolling Stock | N&W Rwy - Tender - Locomotive - USRA - 12,000 gal. |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 16,000 gal. |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 18,000 gal. |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 12,000 gal. |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 15,000 gal. |
| Rolling Stock | N&W Rwy - Tender - Locomotive - 9,000 gal. |
