| Locator | NW Mech Dwg - NW-C14759 | Type | Drawing | Doc Number | C14759 | |
|---|---|---|---|---|---|---|

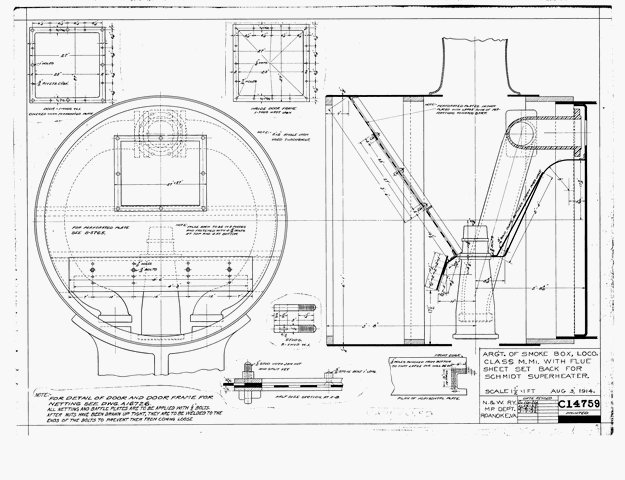

| Description | Arrangement of Smoke Box, Loco. Class M, M1 with Flue Sheet Set Back for Schmidt Superheater. | |||||
| Date | 08/03/1914 | Revision Date | 03/07/1932 | |||
| Author | N&W Rwy - Motive Power | Accession | ||||
|
||
Size: 23in x 18in (59cm x 45cm) |
| Rolling Stock Indexes | |||||
|---|---|---|---|---|---|
| Category | Type | Road Name | Class | Builder | Other |
| Locomotive | Steam | N&W Rwy | M | 4-8-0 | |
| Locomotive | Steam | N&W Rwy | M1 | 4-8-0 | |
