| Locator | NW Mech Dwg - NW-E15713 | Type | Drawing | Doc Number | E15713 | |
|---|---|---|---|---|---|---|

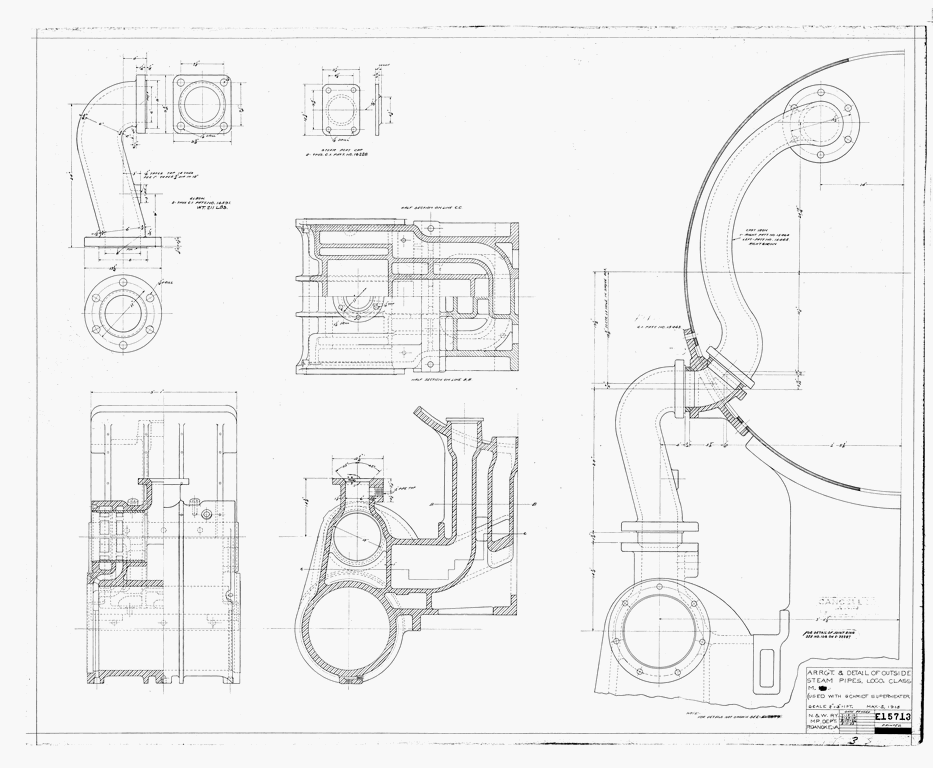

| Description | Arrangement & Detail of Outside Steam Pipes. Loco. Class M (Used with Schmidt Superheater) | |||||
| Date | 05/05/1915 | Revision Date | 05/11/1933 | |||
| Author | N&W Rwy - Motive Power | Accession | 2001.001 : Mark Faville | |||
|
||
Size: 39in x 32in (100cm x 82cm) |
| Rolling Stock Indexes | |||||
|---|---|---|---|---|---|
| Category | Type | Road Name | Class | Builder | Other |
| Locomotive | Steam | N&W Rwy | M | 4-8-0 | |
