Locator NW Mech Dwg - NW-C26239 Type Drawing Doc Number C26239
Description Arrangement and Detail of Guide, Cross-Head & Front End Connecting Rod Oil Box Loco Class E3, E, E1, E2a, E2b, G1, M, M1, M2, M2c, V1, W2, Y2a, Y3, Y3a, Y4, Z1a
Date 02/26/1926 Revision Date 07/25/1945
Author N&W Rwy - Motive Power Accession 2018.014 : William Lee Manes

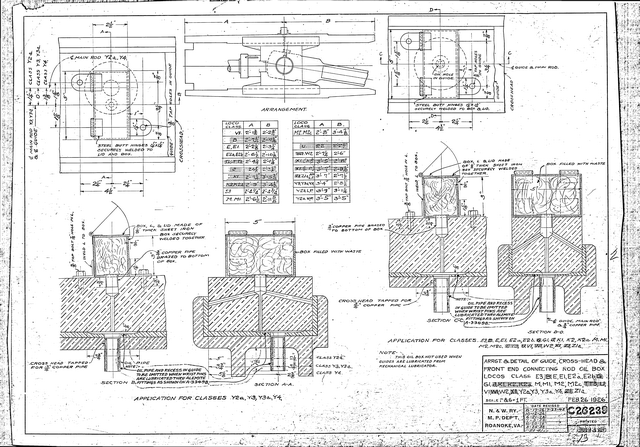

Arrangement and Detail of Guide, Cross-Head & Front End Connecting Rod Oil Box Loco Class E3, E, E1, E2a, E2b, G1, M, M1, M2, M2c, V1, W2, Y2a, Y3, Y3a, Y4, Z1a

Size: 23in x 16in (58cm x 41cm)
